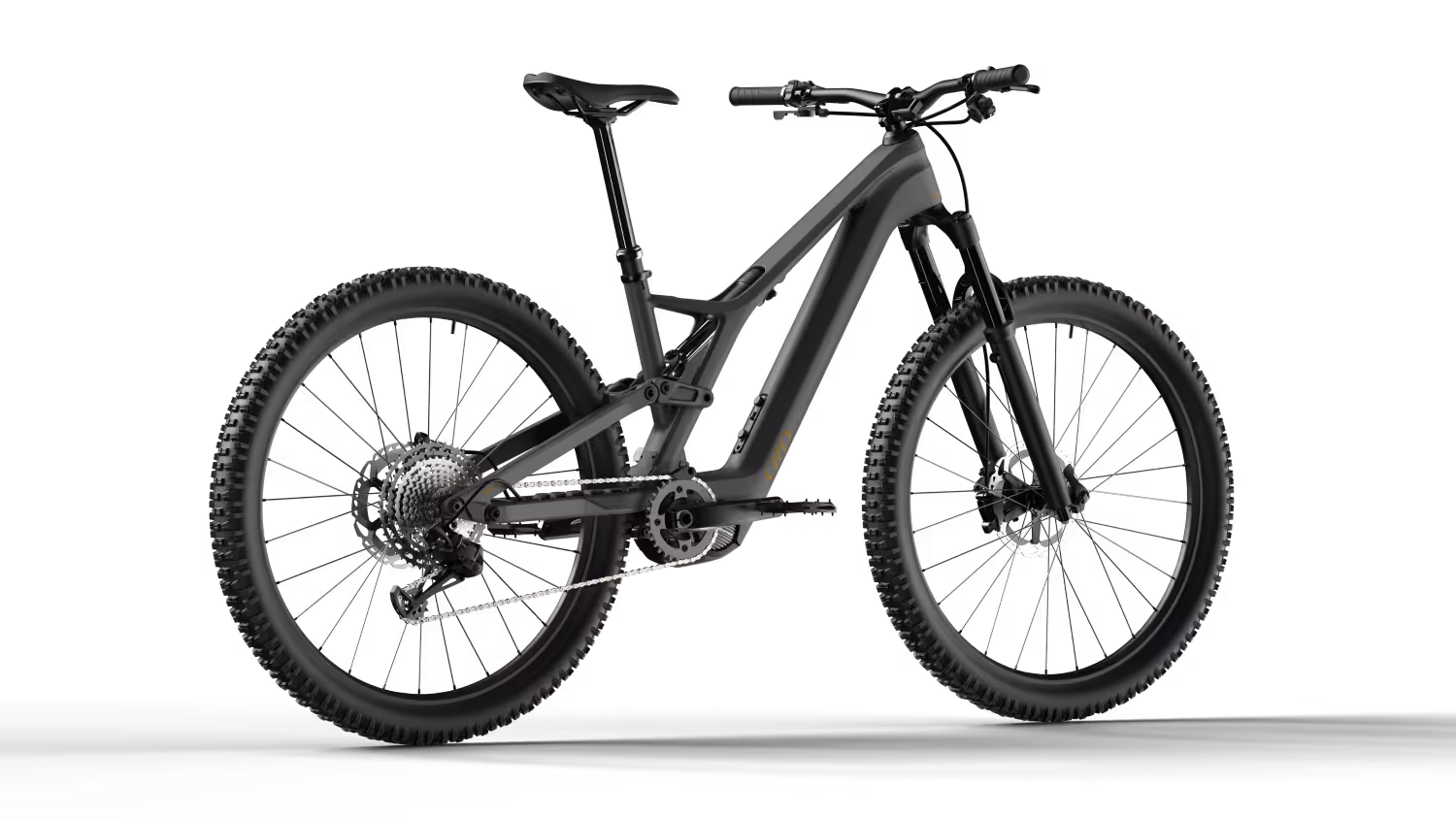

TANAY LC
When “light” means more freedom: more time out there, more flow, and even more all-mountain moments.
The CILO Tanay LC is your all-mountain buddy if you love lightness and like to ride your line actively. A light-assist eMTB that feels like a living training partner: agile, intuitive and bursting with energy. It plays with you through technical trails, stays precise in rocky sections and rewards you on the climbs with that special moment when motor power and muscle power blend into one perfect rhythm. Its lightweight setup, efficient assistance and playful handling turn quick direction changes, tight turns and root patches into pure, unfiltered flow. The Tanay LC combines traction, control and lightness into a riding experience that elevates every tour – sporty, free and incredibly alive. An all-mountain that doesn’t make the mountains smaller, but gives you the freedom to truly enjoy them.
FEATURES
IDEAL BALANCE
The carbon frame offers lightness, stability, and comfort. Thanks to its high stiffness and reduced weight, it guarantees exceptional performance both uphill and downhill. The material absorbs vibrations, enhances riding comfort, and improves control on uneven terrain.
MODERN FRAME DESIGN
The frame design combines agility, stability, efficiency, comfort, and safety. Short rear stays, long reach, low center of gravity, short stem, and a very low standover height maximize control and fun on any trail.

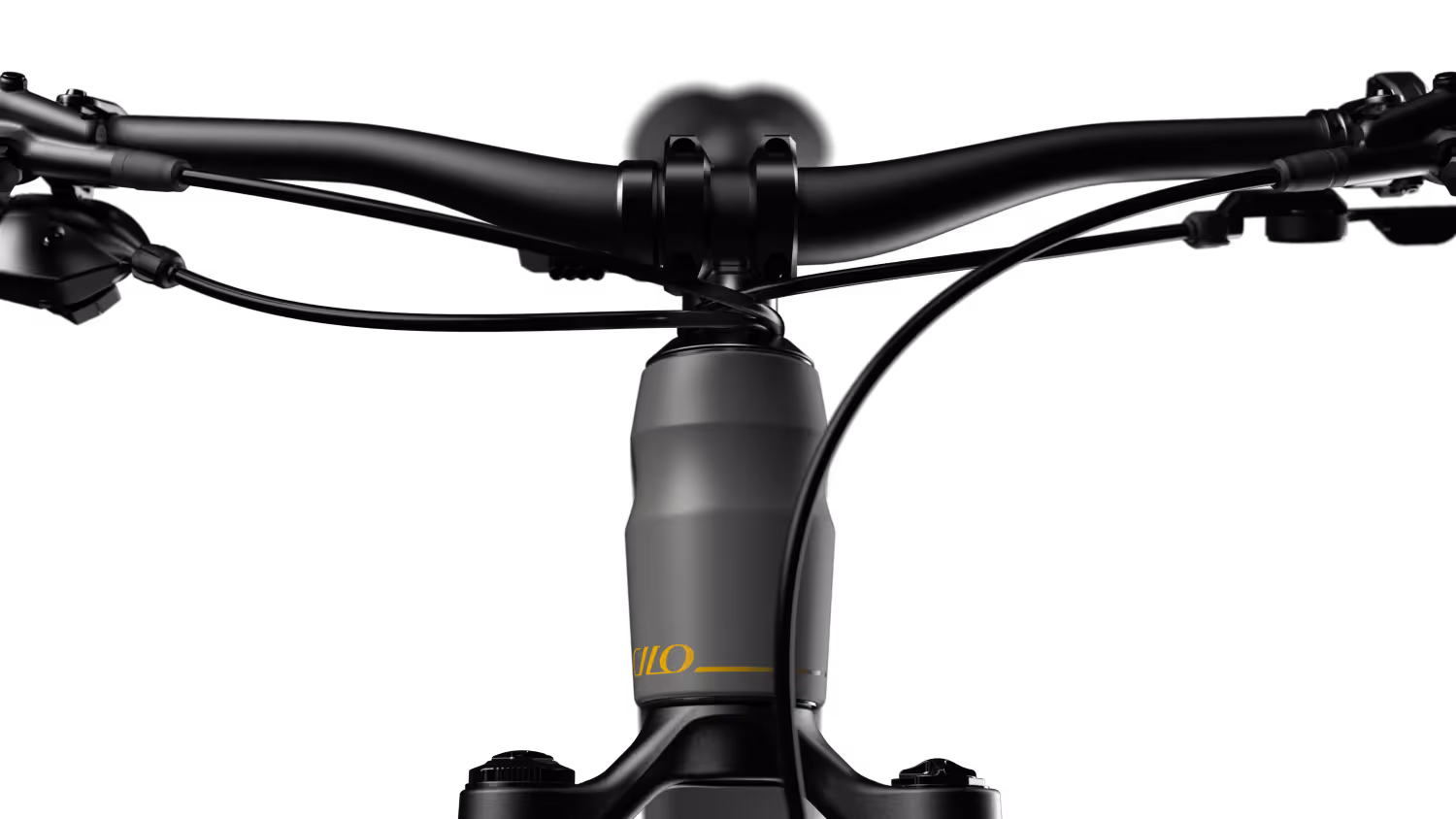

INTERNAL CABLE ROUTING
The internal cable routing, from the head tube to the rear stays, ensures a clean aesthetic and effectively protects the cables from corrosion, dirt, bending, and external factors.

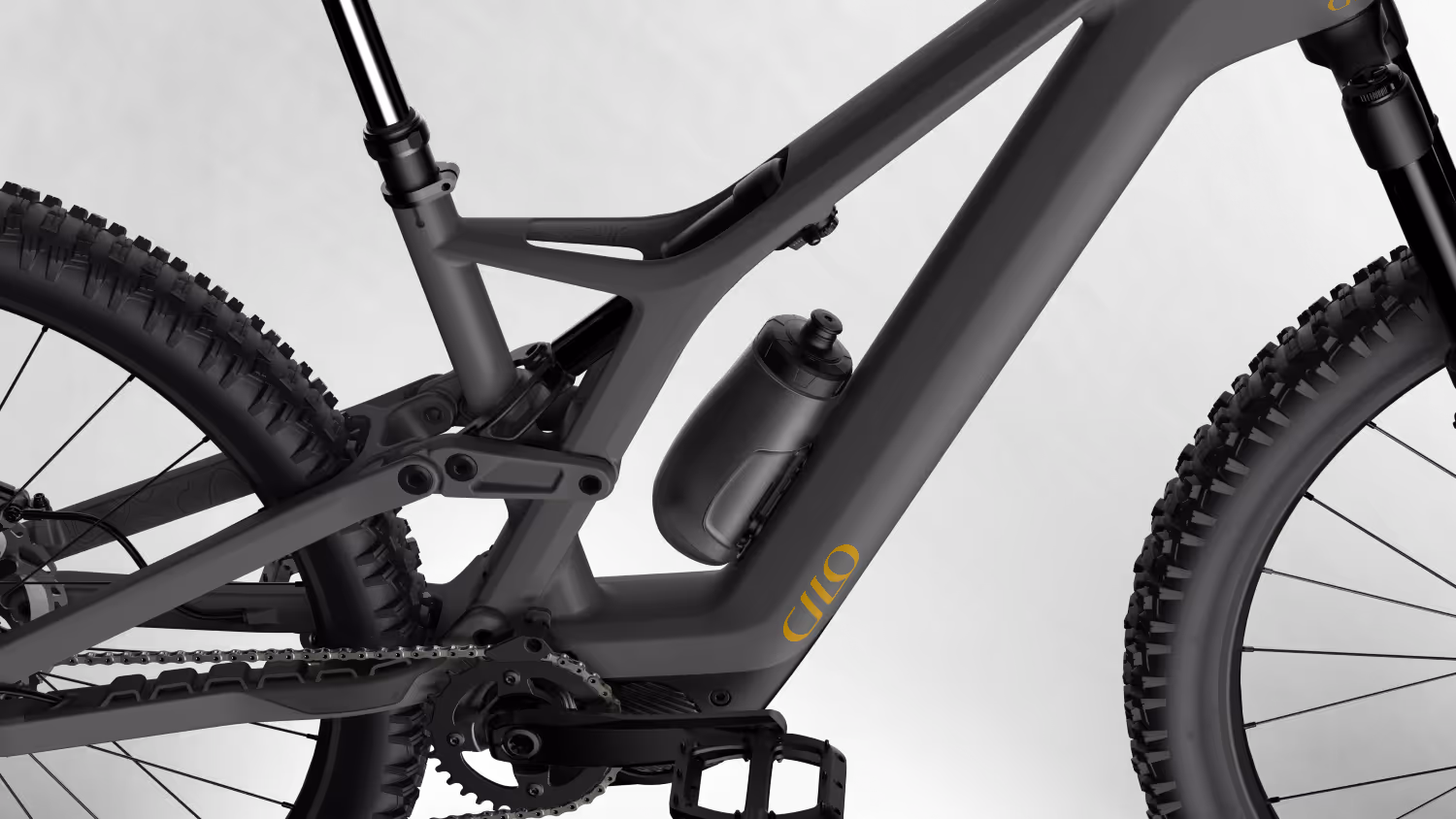

BALANCED SUSPENSION
Perfect balance between uphill and downhill performance: 100% Anti-Squat ensures efficient pedaling, while 50% Anti-Rise allows for active braking within the suspension travel, providing stable riding comfort and maximum control at high speeds. The specific suspension adjustments enable the bike's full performance potential on any type of terrain.

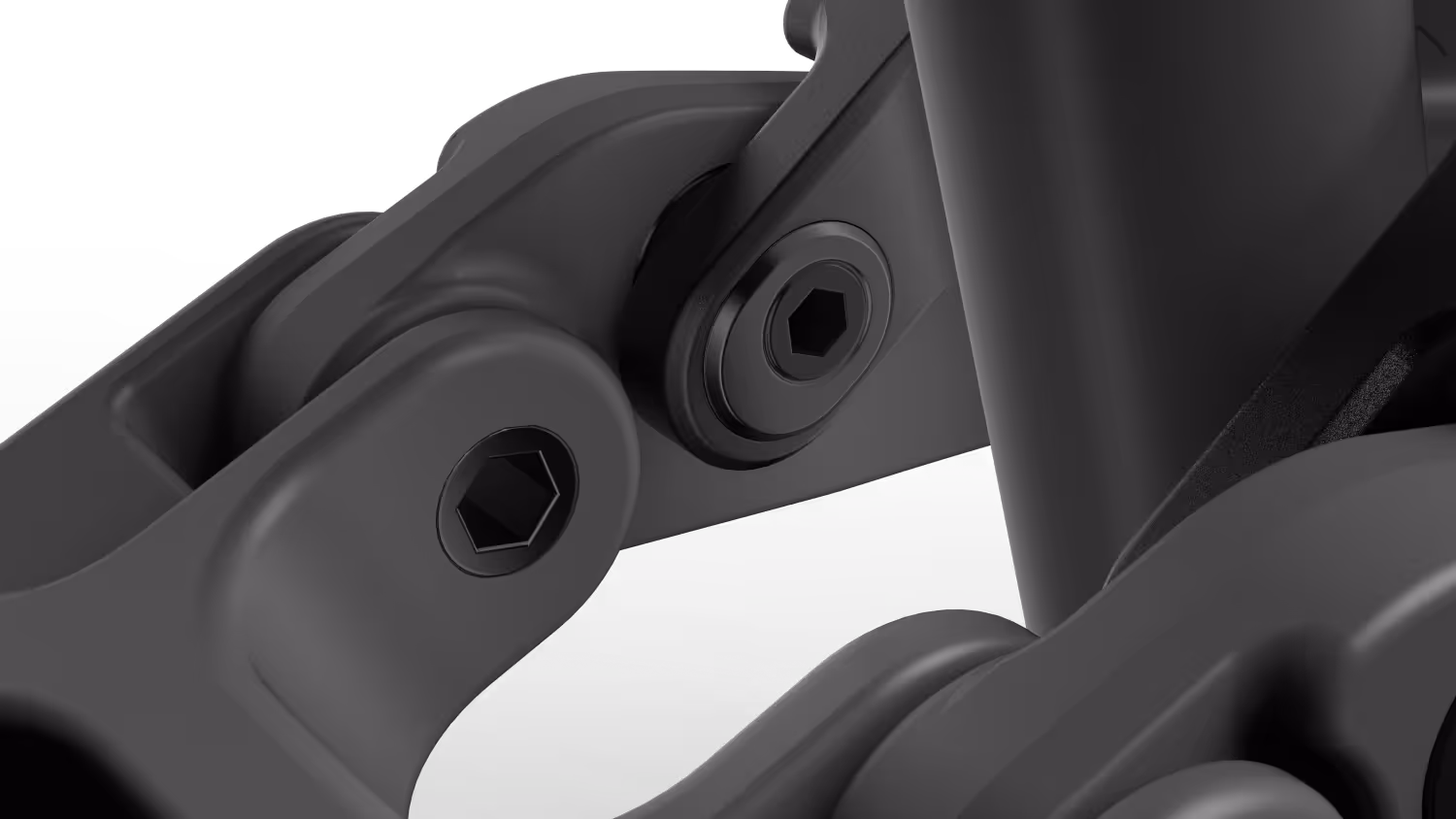

FLIP CHIP
Thanks to the Flip Chip system in the shock linkage, it is possible to modify the seat tube angle, head tube angle, and bottom bracket height, allowing the bike to be optimized for a more agile and responsive ride or for more stable and secure descents at high speeds.

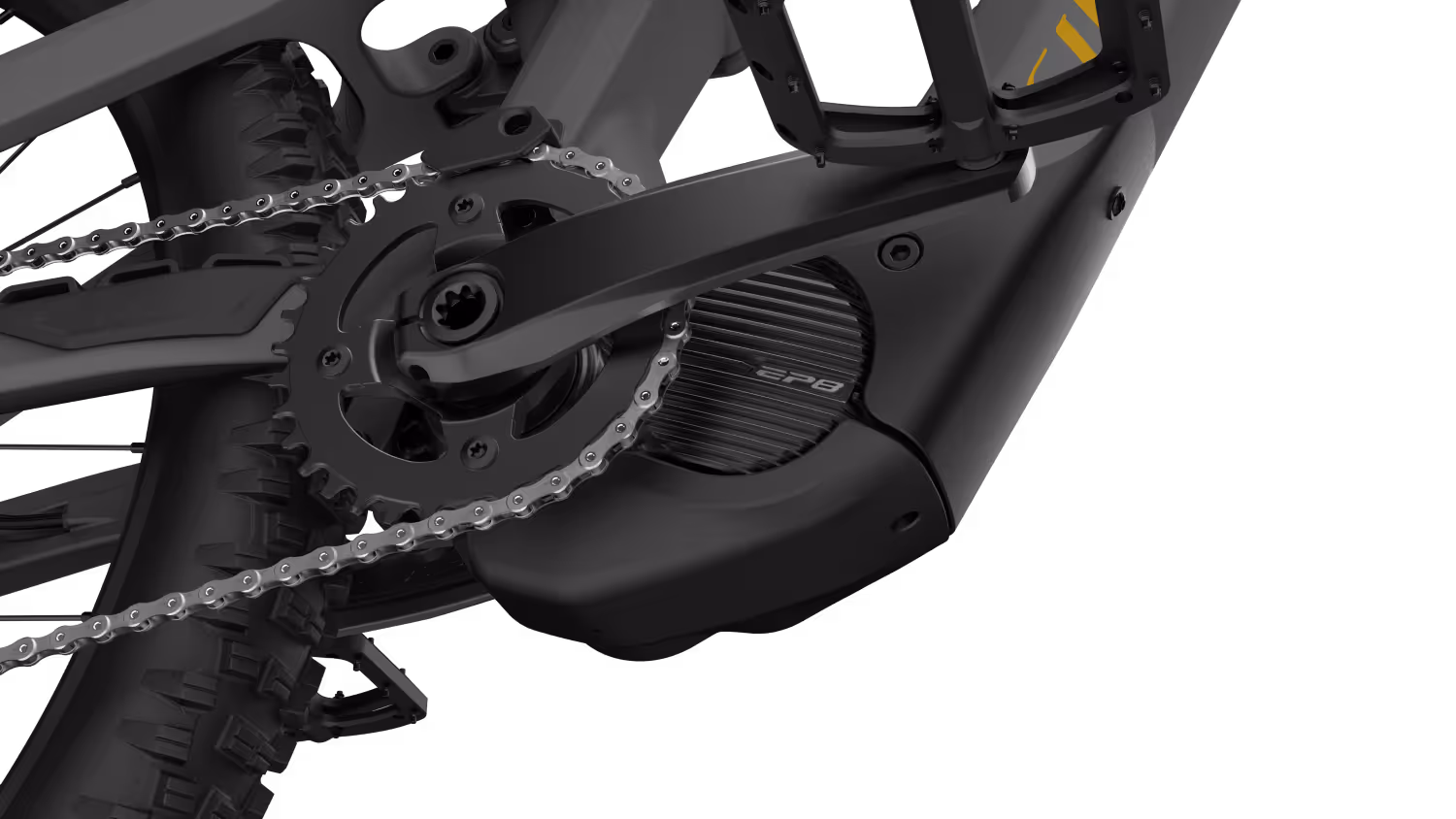

DUAL MODE
The Dual Mode concept allows you to choose between high autonomy and powerful assistance. In autonomy mode, support is reduced, while in power mode, the maximum performance of the Shimano motor with 85 Nm is activated. Both modes can be customized and saved through the Shimano app.

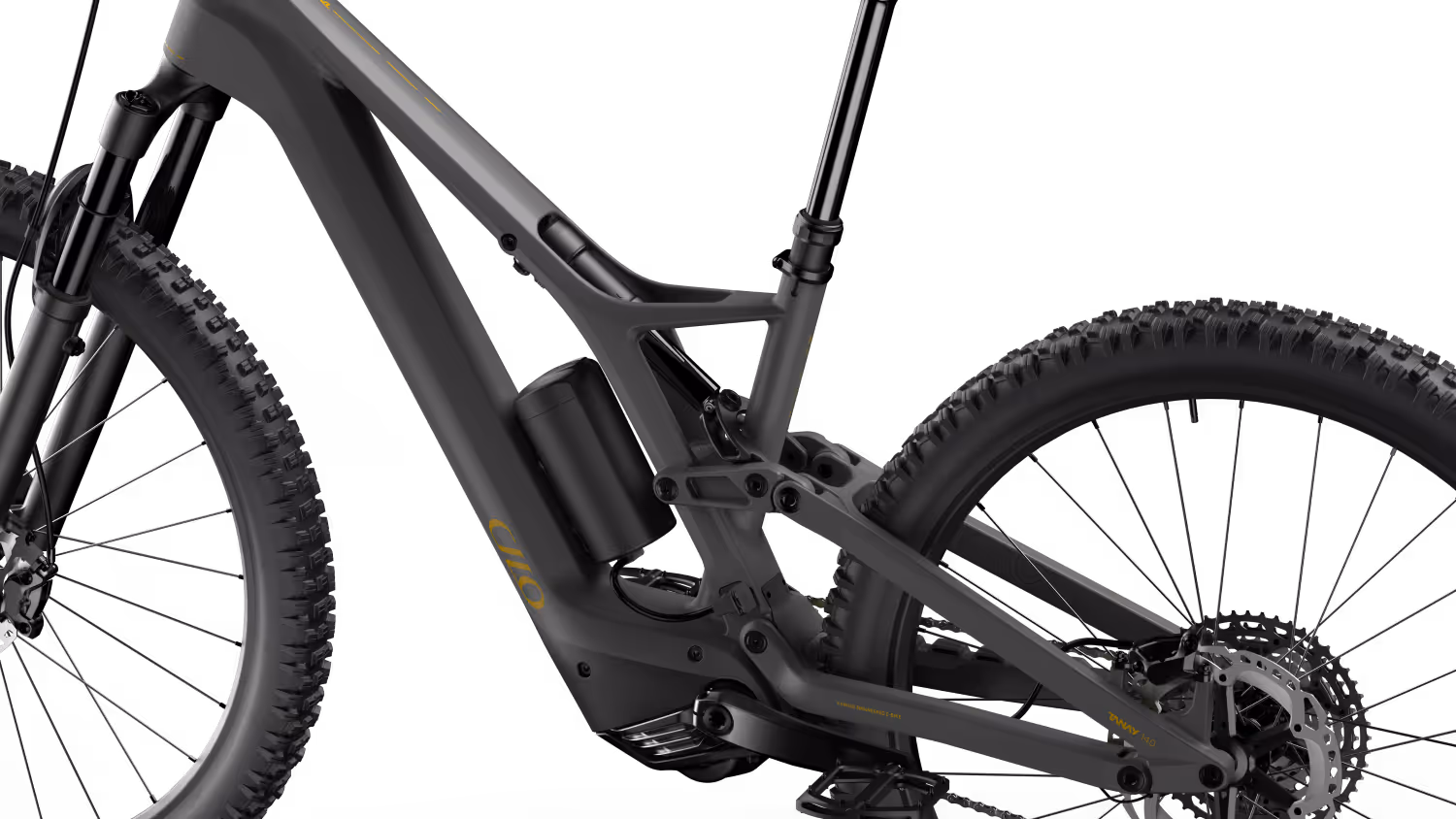

RANGE EXTENDER READY
For greater flexibility, comfort, and range, the 400 Wh battery can be extended by up to 50% with optional range extenders in bottle format. The extender can be easily attached using the Fidlock mounting plate.
GEOMETRY
Size
S
M
L
A) Seat tube length [mm]
370
400
445
B) Top tube length [mm]
557
600
647
C) Head tube length [mm]
100
120
140
D) Chainstay length [mm]
453
E) Bottom bracket height [mm]
341
F) Bottom bracket [mm]
36,5
G) Head tube angle [°]
64
H) Seat tube angle [°]
79
78,6
78,2
I) Reach [mm]
437
471
511
J) Stack [mm]
617
635
652
K) Wheelbase [mm]
1201
1244
1293
L) Standover [mm]*
697
696
719
*Distance ground/lowest point top tube
SPECIFICATIONS

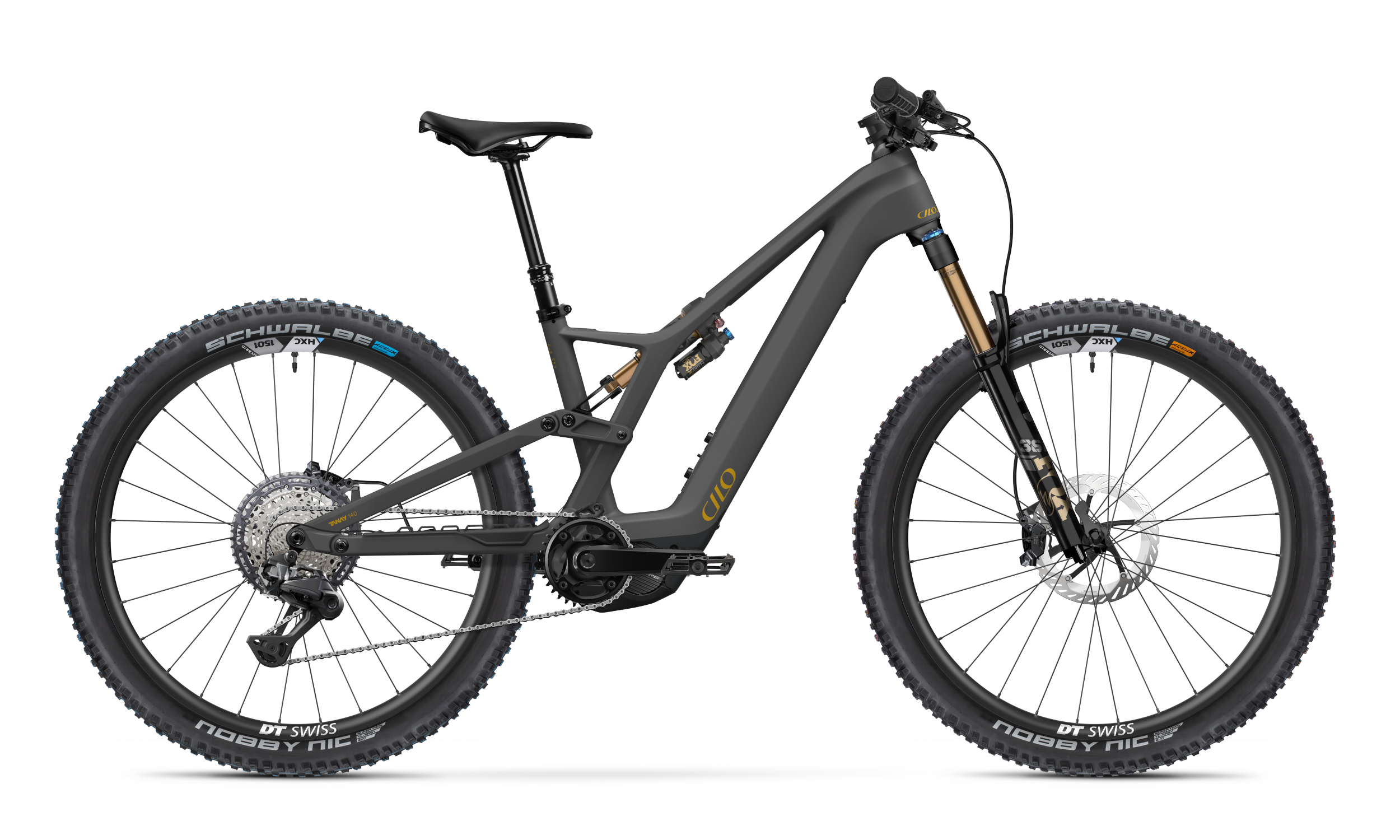

TANAY LC1
Frame
Carbon, UDH
Rear Shock
FOX Float Factory, LSR,
2-position, LSC
2-position, LSC
Fork
FOX Float 36 SL Factory, 140 mm, 29", GRIP X
Headset
Acros ICR Blocklock 150 ZS56
Stem
TRANZ X MTB, 35 mm, 0°, 32 mm
Handlebars
RACEFACE Era Carbon,
35x800 mm, 20 mm
35x800 mm, 20 mm
Grips
Velo MTB
Display
Shimano EN600
Remote
Shimano EN600
Seat Post
Limotec H1, 200 mm
RM07 I-SPEC
RM07 I-SPEC
Saddle
Velo MTB
Motor
Shimano EP801
Battery
Darfon 388 Wh intube battery
Charger
Darfon 4A
Derailleur
Shimano XT Di2 M8260,
12 speed
12 speed
Shifter Levels
Shimano XT Di2 M8250
Cassette
Shimano XT M8200,
12 speed, 10-51t
12 speed, 10-51t
Chain
Shimano Deore M6100
Crank
Samox ET40, 165 mm
Chainrings
Samox, 34t
Chain Guide
Funn
Brakes (f/r)
Shimano XT M8220/M8200
Rotors (f/r)
Shimano RT-CL800 ICE, 203 mm
Wheels (f/r)
DT Swiss HXC1501, 29",
30 mm, TLE15x110 mm/ 12x148 mm
30 mm, TLE15x110 mm/ 12x148 mm
Tyres (f/r)
Schwalbe Nobby Nic EvoSuper Trail TLE, Addix Soft/Speed Grip
Tubes (f/r)
Tubeless
Bottle Cage
Fidlock Twist bike base integrated
Colour
Slate Grey
Sizes
S, M, L
Max weight limit
135 kg
Subject to changes or errors.
€ 9.499,-
MSRP incl. VAT
MSRP incl. VAT
TANAY LC2
Frame
Carbon, UDH
Rear Shock
FOX Float Performance, LSR, 2-position
Fork
FOX Float 36 SL Performance, 140 mm, GRIP X
Headset
Acros ICR Blocklock 150 ZS56
Stem
TRANZ X MTB, 35 mm, 0°, 32 mm
Handlebars
TRANX X MTB, 35x780 mm, 9° back- / 5° upsweep
Grips
Velo MTB
Display
Shimano EN600
Remote
Shimano EN600
Seat Post
Limotec H1, 200 mm
RM07 I-SPEC
RM07 I-SPEC
Saddle
Velo MTB
Motor
Shimano EP801
Battery
Darfon 388 Wh intube battery
Charger
Darfon 4A
Derailleur
Shimano Deore Di2 M6260,
12 speed
12 speed
Shift Levers
Shimano Deore Di2 M6250
Cassette
Shimano Deore, CS-M6100,
12 speed, 10-51t
12 speed, 10-51t
Chain
Shimano Deore M6100
Crank
Samox ET40, 165 mm
Charinrings
Samox, 34t
Chain Guide
Funn
Brakes (f/r)
Shimano Deore M6120/M6100
Rotors (f/r)
Shimano RT-CL700 ICE, 203 mm
Wheels (f/r)
DT Swiss HX1700, 29",
30 mm, TLE15x110 mm/ 12x148 mm
30 mm, TLE15x110 mm/ 12x148 mm
Tyres (f/r)
Schwalbe Nobby Nic EvoSuper Trail TLE, Addix Soft/Speed Grip
Tubes (f/r)
Schwalbe, SV19FB Light 54/75-622
Bottle Cage
Fidlock Twist bike base integrated
Colour
Slate Grey
Sizes
S, M, L
Max weight limit
135 kg
Subject to changes or errors.
€ 7.499,-
MSRP incl. VAT
MSRP incl. VAT
