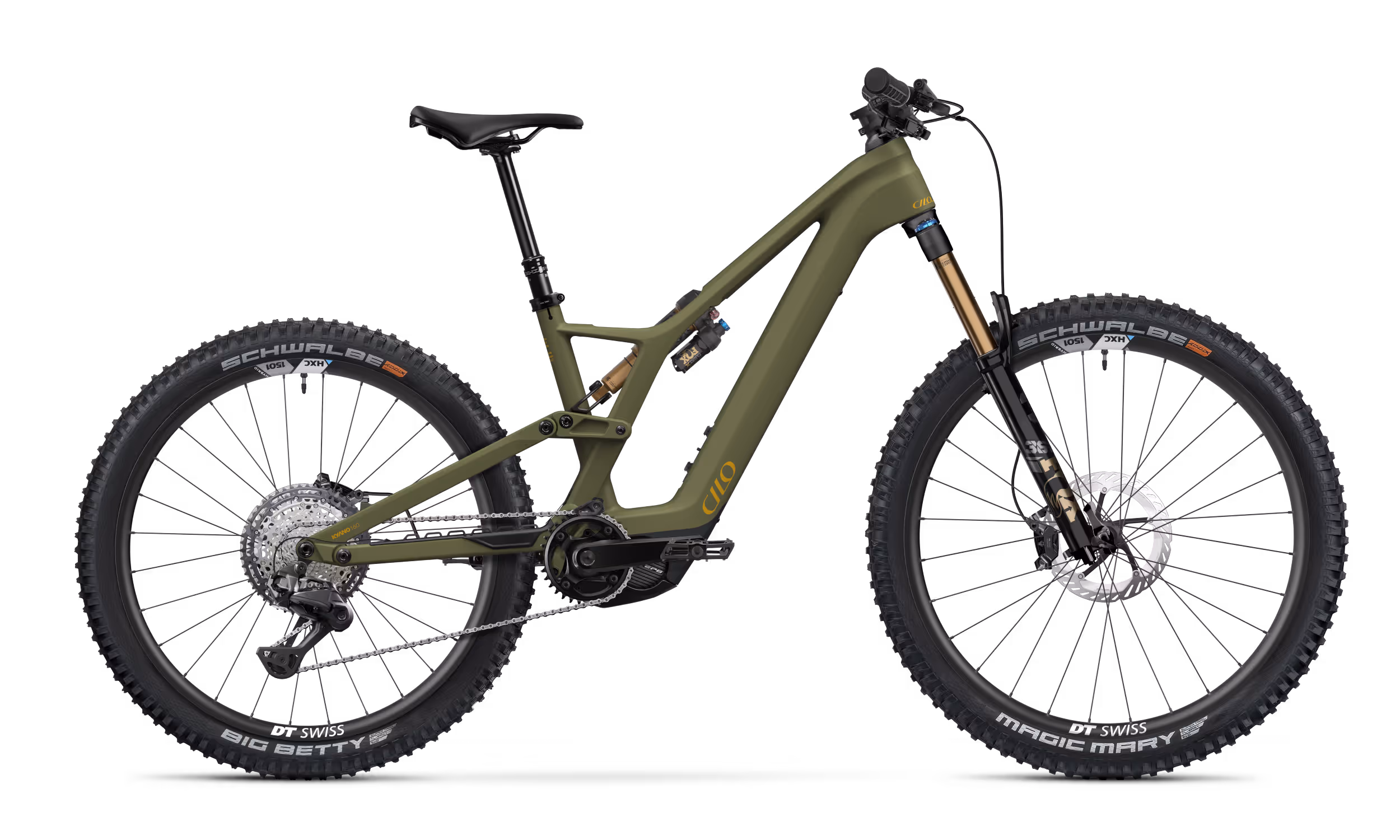

KYANO LC
When “Light” in Light Assist doesn’t mean less, but more: more control. More fun. More adventure.
The Kyano LC is made for riders who celebrate every gram and still want full enduro power. It rides as if someone rewrote gravity: agile, precise and ready for big, bold lines. Its 160/160 mm suspension floats over roots, steps and chunky rock sections like a playground for grown-up kids. The mullet setup delivers razor-sharp response and playful agility – perfect for rapid direction changes and technical crux moves. Add to that the natural Shimano assistance with a compact 388 Wh battery, giving you exactly the boost you need to unlock even more flow. And with the range extender, you stack an extra 200 Wh on top.Steep trails, long days, new adventures: the Kyano LC opens up a world that feels free, intuitive and incredibly alive. A bike that celebrates every line with you – and immediately asks for the next one.
FEATURES
IDEAL BALANCE
The carbon frame offers lightness, stability, and comfort. Thanks to its high stiffness and reduced weight, it ensures exceptional performance both uphill and downhill. The material absorbs vibrations, enhances riding comfort, and improves control on uneven terrain.
MODERN FRAME DESIGN
The frame design combines agility, stability, efficiency, comfort, and safety. The short rear stays, long reach, low center of gravity, short stem, and very low standover height ensure optimal control and an unparalleled riding experience on every trail.
INTERNAL CABLE ROUTING
The internal cable routing, from the head tube to the rear stays, ensures a clean aesthetic and effectively protects the cables from corrosion, dirt, bending, and external factors.
BALANCED SUSPENSION
Optimal balance between uphill and downhill performance: 100% Anti-Squat ensures efficient pedaling, while 50% Anti-Rise allows for active braking within the suspension travel, ensuring stable riding and maximum control at high speeds. The specific suspension adjustments optimize performance on all types of terrain.
FLIP CHIP
With the Flip Chip system in the shock linkage, the seat tube angle, head tube angle, and bottom bracket height can be adjusted. This allows the bike to be optimally adapted for steep climbs, fast descents, or technical trails.
MIXED WHEEL
The 29” front wheel offers maximum stability, excellent cornering traction, and obstacle-clearing ability, while the 27.5” rear wheel enhances agility and promotes a more dynamic ride.
DUAL MODE
The Dual Mode concept allows you to choose between high autonomy and powerful assistance. In autonomy mode, support is reduced, while in power mode, the maximum performance of the Shimano motor with 85 Nm is activated. Both modes can be customized and saved through the Shimano app.
RANGE EXTENDER READY
For greater flexibility, comfort, and range, the 400 Wh battery can be extended by up to 50% with optional range extenders in bottle format. The extender can be easily attached using the Fidlock mounting plate.
GEOMETRY
Size
S
M
L
A) Seat tube length [mm]
370
400
445
B) Top tube length [mm]
559
602
649
C) Head tube length [mm]
100
120
140
D) Chainstay length [mm]
440
E) Bottom bracket height [mm]
349
F) Bottom bracket [mm]
31
G) Head tube angle [°]
64,5
H) Seat tube angle [°]
78
77,6
77,3
I) Reach [mm]
426
461
501
J) Stack [mm]
624
642
660
K) Wheelbase [mm]
1197
1241
1289
L) Standover [mm]*
706
706
729
*Distance ground/lowest point top tube
SPECIFICATIONS
KYANO LC1
Frame
Carbon, UDH
Rear Shock
FOX Float X Factory, LSR, 2-position, LSC
Fork
FOX Float 36 Factory,
160 mm, GRIP X2
160 mm, GRIP X2
Headset
Acros ICR Blocklock 150 ZS56
Stem
TRANZ X MTB, 35 mm, 0°, 32 mm
Handlebars
RACEFACE Era Carbon, 35x800 mm, 20 mm
Grips
Velo MTB
Display
Shimano EN600
Remote
Shimano EN600
Seat Post
Limotec H1, 200 mm
RM07 I-SPEC
RM07 I-SPEC
Saddle
Velo MTB
Motor
Shimano EP801
Battery
Darfon 388 Wh intube battery
Charger
Darfon 4A
Derailleur
Shimano XT Di2 M8260,
12 speed
12 speed
Shift Levers
Shimano XT Di2 M8250
Cassette
Shimano XT M8200,
12 speed, 10-51t
12 speed, 10-51t
Chain
Shimano Deore M6100
Crank
Samox ET40, 165 mm
Chainrings
Samox, 34t
Chain Guide
Funn
Brakes (f/r)
Shimano XT M8220
Rotors (f/r)
Shimano RT-CL800 ICE, 203 mm
Wheels (f/r)
DT Swiss HXC1501, 29"/27.5", 30 mm TLE, 15x110 mm/12x148 mm
Tyres (f/r)
Schwalbe Magic Mary Evo/Big Betty Evo, Super Trail TLE, Addix Soft
Tubes (f/r)
Tubeless
Bottle Cage
Fidlock Twist bike base integrated
Colour
Muddy Green
Sizes
S, M, L
Max weight limit
135 kg
Subject to changes or errors.
€ 9.499,-
MSRP incl. VAT
MSRP incl. VAT
KYANO LC2
Frame
Carbon, UDH
Rear Shock
FOX Float X Performance, LSR, 2-position
Fork
FOX Float 36 Performance, 160 mm, GRIP
Headset
Acros ICR Blocklock 150 ZS56
Stem
TRANZ X MTB, 35 mm, 0°, 32 mm
Handlebars
TRANX X MTB, 35x780 mm, 9° back- / 5° upsweep
Grips
Velo MTB
Display
Shimano EN600
Remote
Shimano EN600
Seat Post
Limotec H1, 200 mm
RM07 I-SPEC
RM07 I-SPEC
Saddle
Velo MTB
Motor
Shimano EP801
Battery
Darfon 388 Wh intube battery
Charger
Darfon 4A
Derailleur
Shimano Deore Di2 M6260,
12 speed
12 speed
Shift Levers
Shimano Deore Di2 M6250
Cassette
Shimano Deore M6100,
10-51T, 12 speed
10-51T, 12 speed
Chain
Shimano Deore M6100
Crank
Samox ET40, 165 mm
Chainrings
Samox, 34t
Chain Guide
Funn
Brakes (f/r)
Shimano Deore M6120
Rotors (f/r)
Shimano RT-CL700 ICE, 203 mm
Wheels (f/r)
DT Swiss HX1700, 29"/27.5", 30 mm, TLE, 15x110 mm/12x148 mm
Tyres (f/r)
Schwalbe Magic Mary Evo/Big Betty EvoSuper Trail TLE, Addix Soft
Tubes (f/r)
Schwalbe, SV19FB Light 54/75-622
Bottle Cage
Fidlock Twist bike base integrated
Colour
Muddy Green
Sizes
S, M, L
Max weight limit
135 kg
Subject to changes or errors.
€ 7.499,-
MSRP incl. VAT
MSRP incl. VAT
